Safety Clamps Inc. Model HLDW Horizontal Lifting Clamp

Model HLD is a non-locking horizontal lifting clamp with an Extra Wide Jaw Opening, used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.

Model HLDW – Horizontal Lifting Clamp Features

Dual Cam Horizontal Lifting Clamp for plate steel
Used in pairs or any multiple arrangements to lift and transfer a single plate or stacked plates in a horizontal position only.

Extra Wide Jaw Opening

  • Special jaw openings are available upon request.

Non-locking

Rated to lift material with a surface hardness of up to 450 Brinell

Non-Marring is available for material with a surfaced hardness in excess of 450 Brinell

Horizontal Transfer Of Material

Technical Data

Safety Clamps Model HLDW Operators Manual

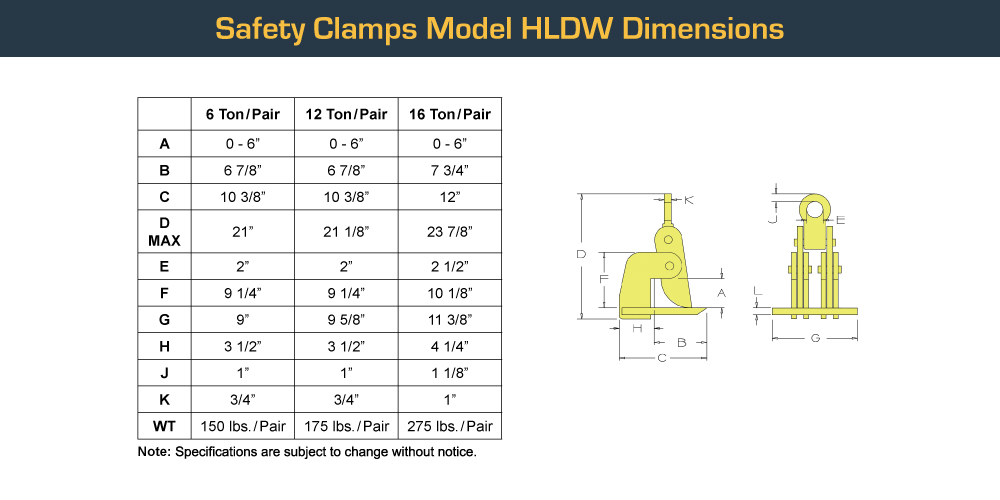

HLDW Dimensions
Model HLDW Exploded View
